XBSL user guide

The complete guide to the toolkit – installation, CLI flags, CI setup, the baseline mechanism, and metadata scaffolding.

The complete guide to the toolkit. The README is the short tour; everything it links to in depth lives here. The full rule list is a separate document – RULES.md.

Language data

The linter relies on language tables (bilingual keywords, operators), an stdlib type catalog, and the configuration metamodel (element properties). XBSL is built on Eclipse Xtext + ANTLR; these are extracted from your 1C:Element distribution (the InternalBsl.g grammar, the documentation, and the .xcore metamodel) and are NOT bundled in this repository. Generate them locally:

python tools/extract_grammar.py   --dist "<path to the 1C:Element distribution>"
python tools/extract_stdlib.py    --dist "<path to the 1C:Element distribution>"
python tools/extract_metamodel.py --dist "<path to the 1C:Element distribution>"

The scripts auto-detect the platform version and place the data under xbsl/data/element/<version>/ (this folder is gitignored). Without the data, the linter and the tests will tell you to generate it. Pass --data-dir (or set XBSL_DATA_DIR) to write the data somewhere else – for instance into a private package that ships it, see Extending.

The extractors ship with the repository, not with the PyPI package – clone the repository to generate the data.

Installation details

pip install xbsl            # or, from a clone: pip install -e .
xbsl path/to/sources        # or: python -m xbsl path/to/sources
xbsl self-update            # upgrade to the latest PyPI version

self-update upgrades the package by unpacking the wheel straight into site-packages – safe even when pip install --upgrade fails with WinError 32 because an exe is busy (the typical case: xbsl-lsp.exe held by the VS Code LSP server, xbsl-mcp.exe by an agent’s MCP session). The busy stubs are left alone and pick up the new code on the next start; restart the long-living processes after the update. --version X.Y.Z installs a specific version. In an editable install from a clone the command refuses – git pull updates that one.

The hot modules (the lexer and the parser) can be compiled by mypyc into C extensions: XBSL_MYPYC=1 at build time (needs mypy and a C compiler: MSVC Build Tools on Windows, Xcode CLT on macOS, gcc on Linux). Users never need a compiler: the ready-made native wheels are built by CI (native-wheels.yml), and without a matching wheel the package runs as plain Python – no compiler, no loss of functionality.

CLI flags

--list-rules, --where (data root, source and versions), --select/--enable/--ignore (by rule id, rule group – the part of the id before / – or tier letter), --fix, --baseline/--write-baseline, --element-version, --data-dir, --lang, --format text|json|codeclimate.

--fix repairs the mechanical findings in place – trailing whitespace, typography characters (em dash → en dash, … → ..., curly quotes and comment guillemets → straight), and mixed newlines (normalized to the dominant style) – then reports whatever is left. It only applies unambiguous edits and only for rules active in the run (so --fix --enable typography also pays down the em-dash/guillemets debt); anything needing judgment is never touched.

For editor integration, --stdin --filename NAME checks a single buffer read from stdin (per-file rules only); the JSON payload ({diagnostics, summary}) is the same one the MCP server returns.

xbsl --index PATH dumps a JSON index of the project to stdout instead of linting – the objects (with their TabularParts, module-declared local types and the member families for dot completion), the method declarations with their annotations and the named form components, with POSIX paths relative to the root and 1-based lines – for go-to-definition and completion in editors.

--format codeclimate emits a GitLab Code Quality report (Code Climate issues) with paths relative to the current directory – run it from the repository root and save the output as the codequality artifact.

Output language

Rule titles and diagnostic messages come in Russian and English. The language is picked by --lang ru|en > the XBSL_LANG env var > the system locale > Russian. Type names, keywords and other XBSL text inside a message are never translated – only the wording around them. The MCP server and the web panel follow the same setting (the web panel also has an in-page RU/EN toggle).

Use in CI

xbsl exits non-zero only when a run produces an error-severity finding, so it works as a pipeline gate as-is – warnings and info do not fail the build. The one prerequisite is the language data (see Language data): generate it in the job (the extractors ship with the repository, so check the repo out), or depend on a package that ships the data via the xbsl.data entry point (see Extending) and just pip install it.

GitHub Actions

lint:
  runs-on: ubuntu-latest
  steps:
    - uses: actions/checkout@v4
    - uses: actions/setup-python@v5
      with: { python-version: "3.12" }
    - run: pip install xbsl
    # generate the data from your 1C:Element distribution (or install a package that ships it):
    - run: |
        python tools/extract_grammar.py  --dist "$ELEMENT_DIST"
        python tools/extract_stdlib.py   --dist "$ELEMENT_DIST"
        python tools/extract_metamodel.py --dist "$ELEMENT_DIST"
    - run: xbsl acme/          # fails the job on any error-severity finding

GitLab CI (Code Quality widget)

--format codeclimate writes a Code Climate report that GitLab renders inline on the merge request. Run it from the repository root and save the output as the codequality report. The command still returns non-zero on error-severity findings, so artifacts.when: always keeps the report even when the job gates the pipeline (drop the gate with a trailing || true if you want the widget only):

lint:
  script:
    - pip install xbsl
    - xbsl --format codeclimate acme/ > gl-code-quality-report.json
  artifacts:
    when: always
    reports:
      codequality: gl-code-quality-report.json

Rules in depth

The full list of all 87 rules (severity, default state, scope, links to platform documentation sections) is in RULES.md; at runtime – xbsl --list-rules. The tier overview is in the README; below is what the deeper tiers actually verify.

The type rules of tier D cover every type position in code (new, as casts, annotations, signatures) and every Type: key in yaml (unions A|B|?, generics, nullable): the root must be a known type – stdlib, a project object, a module-declared local type or a global type of a declared library (see below) – and a dotted chain rooted at a project object must stay within the family that object generates: the derived types extracted from the distribution docs (Reference, Object, CreateObject, the automatic forms…), its TabularParts and module structures. Namespace-qualified references (Catalog.X.Reference) also check that the object exists under that kind, and the values of project enumerations are verified both in code and in yaml bindings.

The types of the declared libraries come from their archives. The project descriptor declares the coordinates only – Vendor, Name and Version – so the names are read from the {Vendor}-{Name}-{Version}.xlib archive, looked up in the project descriptor’s directory and above it (up to four levels) – where the archive sits when the sources are shipped. An element becomes known when its VisibilityScope is Global; the rest is the library’s own business. With no archive next to the sources the library types stay unknown, exactly as they were before libraries were understood at all.

The cross-file rules of tier D catch what the compiler reports late or not at all: a Handler: in yaml with no method in the paired module, a foreign-subsystem type used without an Import: entry, a DynamicList typed by the automatic list form that misses an attribute of its object, a cross-component call Components.X.Method() that carries no visibility annotation, environment mismatches (@OnServer called from a client handler without @AvailableFromClient, a client module used from an HttpService), reserved names (a field or parameter named Type in either language spelling, a component property named like a built-in one), methods that nothing references, and top-level yaml properties against the configuration metamodel. The query/ group parses Query{ ... } blocks and verifies the FROM / JOIN tables against the project objects and their TabularParts; a block with constructs outside the supported subset (temporary tables, unions, subqueries) is skipped whole rather than guessed.

Detailed group descriptions – query/ (a composite type in IN with a subquery), project/ (project properties), naming/ (the naming standard, the [morph] extra) and style/ (code-writing conventions and their on/off policy) – live in RULES.md.

Baseline: adopt a rule on a legacy codebase

To enable a rule over code that already violates it without drowning in legacy findings, freeze the current findings into a baseline and hold only new code to the rule:

xbsl acme/app --enable style --write-baseline baseline.json   # freeze the debt once
xbsl acme/app --enable style --baseline baseline.json         # only NEW findings surface

A finding’s identity is (file, rule, message) with an allowed count, so moving a line keeps its finding suppressed while a genuinely new violation surfaces. The summary reports how many findings the baseline suppressed and how many of its entries are now stale (debt paid down) – a signal to rewrite the file. Paths are stored relative to the baseline file, so commit it at the repository root and run the linter from anywhere.

The same file also records point exclusions with their reasons: an entry’s value is either a bare count or {"count": N, "reason": "..."} – the reason says why the code is right on purpose. Reasons are written by the “Exclude the finding” lightbulb action of the VS Code extension (or by hand); --write-baseline keeps the reasons of the identities that survive a rewrite. The LSP server accepts the same --baseline FILE flag, so exclusions disappear in editors too. The identity includes the message text: write and check the baseline under the same output language.

Metadata scaffolding

The toolkit takes over the metadata mechanics: UUIDs, indentation, precise yaml insertions, duplicate checks and section/kind compatibility. The same operations are exposed through the CLI (subcommands, JSON output), MCP (the meta_* tools for agents) and LSP (the xbsl/meta* custom requests that power the VS Code metadata tree).

33 kinds of project element are creatable – from Catalog and Document to VirtualTable (paired with its mandatory .xbql query), ScheduledJob, contracts, rights and commands. Each kind carries what the docs make mandatory: the platform’s own default scope (InSubsystem – widen it deliberately with --scope), a module stub for the handler the kind cannot live without, and a note for whatever the generator must not invent for you. Kinds whose content is drawn in the designer (ReportPanel, IntegrationProcess) are deliberately absent.

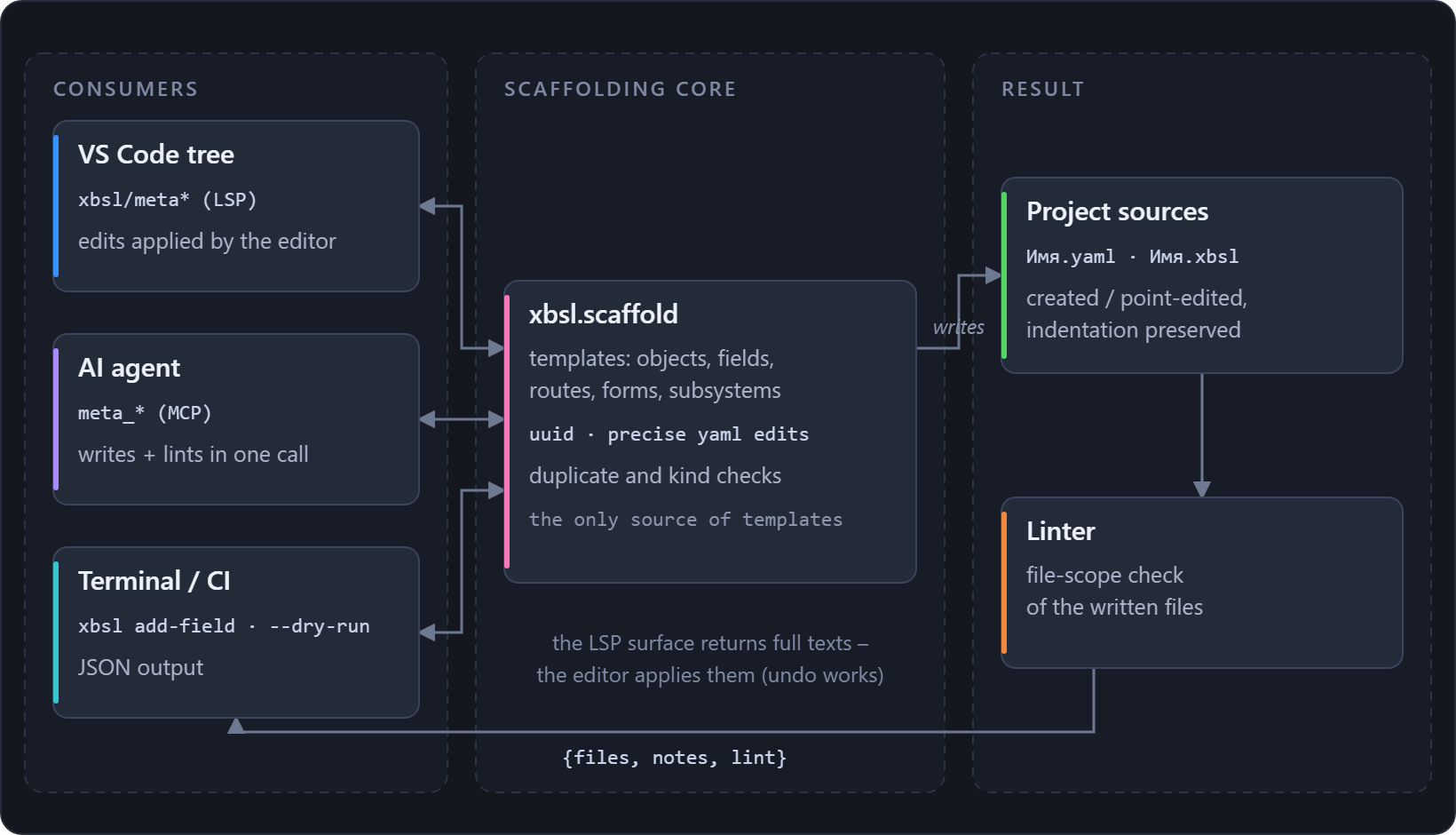

The VS Code tree, AI agents and the terminal call the same scaffolding core; it writes created and point-edited yaml/xbsl files, the linter checks what was written, and the response carries files, notes and the lint report; the LSP surface returns full texts for the editor to apply

xbsl new-project . vendor App                          # descriptor + module + a subsystem
xbsl new-object <subsystem-dir> <kind> <name>          # kind: Catalog, Document, Enum, ... (--help spells them)
xbsl add-field <object>.yaml <section> <field> --type <type>
xbsl add-form . --name <object>                        # object + list forms, registered
xbsl add-form . --name <object> --forms list-cards     # list form as a card grid
xbsl new-object <subsystem-dir> <http-service-kind> <name> --routes "GET /, POST /, GET /{id}"
xbsl add-route  <service>.yaml "DELETE /{id}"          # url template + handler stub
xbsl add-method <module>.xbsl <method> --annotations <annotation> --after <existing-method>
xbsl add-subsystem vendor/App <name>
xbsl add-dependency . acme CurrencyConverter 2.0       # attach a library to the project
xbsl rename-object . <old-name> <new-name>             # rename files + update references
xbsl set-access . --name <object> --default <access-method>
xbsl object-info . --name <object>                     # fields, tabulars, forms, namespace
xbsl project-info .                                    # projects, subsystems, objects by kind

The kind, the section, the annotations, the access methods and every identifier reach the CLI in the spelling the platform uses for the project’s development language; the prose of this page names them by their English equivalents (Catalog, Attributes, OnServer, PermitAuthenticated), which is why the examples above use placeholders. xbsl new-object --help lists the kinds a project can hold, spelled the way the command wants them.

Forms are generated with real content: input fields per attribute (including the standard Name / Number / Date fields and hierarchy support), DynamicList columns, TabularParts tables, a report form with parameters; the form is registered in the Interface section of its owner. --dry-run prints the changes (with full file texts) without writing – this is how the VS Code extension applies them through its own undo-friendly edits.

--forms list-cards builds the list form as a card grid instead of a table: a CustomList whose RowsContainer is a MatrixGroup, plus a generated ListRow<Name> row component named after the object. The card takes a Title, a photo (an attribute of type BinaryObject.Reference switches the card to CustomCard, with the image above the caption) and up to three more fields, dates formatted; notes report what landed on the card and what did not. --card-min-width sets the grid column width (default 400, 250 with a photo) and --card-placeholder the image shown when the photo is empty.

add-dependency attaches a library – it writes the Libraries section of the project descriptor (Name, Vendor, Version). The version is the library’s release version: a release is issued in the control panel, and a build version with a suffix (1.0-42) is rejected. Different versions of one library within a project are not allowed, so attaching an already attached library updates the version of the existing entry. What is attached now – project-info (projects[].libraries). The vendor, name, version and the qualified type names of a library come from parsing its archive: elemctl inspect <file.xlib>.

set-access edits AccessControl.Permissions of an object in place, aware of what each kind allows: --default sets the Default right, --permission Read=PermitEveryone an individual one (custom rights of a PrivilegeOnElement included), --calc-by fills ComputePermissionsBy – mandatory for PermissionsComputedForEachObject. Wrong methods, rights a kind does not have, and per-object rights on a ConstantsSet are rejected; the computed-permission handlers stay yours to write (notes say which). object-info reports the current permissions and the kind’s rights, project-info the Default of every object – no section there means the platform falls back to PermitAdmins.

rename-object renames the object’s files (including its forms and the generated ListRow<Name> component of a card list) and rewrites references context-aware across the whole project: the reference-bearing yaml keys (Type / Table / DataSource / Form / FormType), = bindings and .xbsl code. Attributes, components or dynamic-list fields that merely share the old name are left alone, and so are string literals (UI text); --new-presentation/--old-presentation update the Title / Presentation of the object and its forms. The object’s Id is untouched, so the platform keeps the stored data.

Extending: your own rules, data and severities

Three entry point groups let a separate package extend the linter without forking it. This exists for teams whose rules or language data cannot be published: keep those in a private package that depends on xbsl.

# pyproject.toml of your package
dependencies = ["xbsl>=0.16"]

[project.entry-points."xbsl.rules"]
myproject = "myproject.rules"        # importing the module runs its @rule decorators

[project.entry-points."xbsl.data"]
myproject = "myproject:data_root"    # a path, or a callable returning one

[project.entry-points."xbsl.severity"]
myproject = "myproject:severity_overrides"   # {rule id: "error"|"warning"|"info"|"off"}

Packages that declared the groups under the pre-rename name (xbsllint.rules/xbsllint.data/ xbsllint.severity) keep working: the legacy groups are scanned after the new ones.

The severity dict (or a zero-argument callable returning one) raises or lowers the default level of any rule – built-in or plugin – for every run in this installation: a project may treat, say, style/abbreviation-case as a warning while the published default stays info. "off" removes a rule from the default set (an explicit --select/--enable still turns it on, at its base level).

Install the package and the CLI, the MCP server and the web UI all pick everything up – no flags, no config file. A failing entry point raises instead of warning: a linter that silently drops a rule stays green in CI and guarantees nothing; an override naming an unknown rule id or level raises for the same reason. XBSL_NO_PLUGINS=1 ignores every external package (built-in rules, bundled data and default severities only).

LSP server

xbsl-lsp (the [lsp] extra: pip install "xbsl[lsp]") runs the linter as a long-living Language Server over stdio: live per-file diagnostics as you type, project-wide diagnostics on save, go to definition, completion and hover over a resident project index, and quick-fix code actions – without paying the interpreter start-up cost per call. Flags: --project-root (the sources root relative to the workspace folder), --select/--ignore/ --enable, --data-dir, --baseline, --templates. Any LSP-capable editor (VS Code, Neovim, JetBrains) can spawn it.

Code templates

A template is a short trigger plus a construct: type the first letters of if, press Ctrl+Space, pick the template and get the whole statement with edit points to tab through. The mechanism mirrors the one in 1C:EDT (the code-templates preference page), the file format included.

Templates are offered ahead of the other completions – the construct you are typing out ranks above a name that merely starts the same. They need no Element data, only the LSP server (xbsl.lsp.enabled, on by default): the CLI-index mode of the extension does not offer them.

The builtin set is 51 templates (xbsl/templates_builtin.py): the control statements, the declarations (methods with their annotations, structures, enumerations, exception types), queries and the applied idioms – walking a Catalog, register movements, an HttpService handler, per-object access permissions, object events, form handlers. Every pattern is parsed by the same parser the linter runs (tests/test_templates.py), so a template cannot insert code that does not compile.

A pattern holds edit points and choices. The variables use the ${...} syntax of 1C:EDT templates; unlike the metadata vocabulary the platform gives them no English spelling, so the table describes them instead of spelling them out:

Variable Expands to
edit point an edit point; its argument is the pre-selected prompt text
choice a dropdown of the fixed variants listed in its arguments
metadata name a dropdown of this project’s objects of the given kind (Catalog, Enum, …), from the index
qualified metadata name the same, inserted as <Kind>.<Name>

Your own templates live in .xbsl-templates.json at the workspace root (--file / the xbsl.templates.file setting): the file extends the builtin set, and a template with the same name replaces the builtin one. Only what differs from the builtin set is stored, so the next release still reaches you.

xbsl templates list                        # the whole set: builtin plus your own (* marks yours)
xbsl templates export --output my.json     # a dump (to carry your templates to another machine)
xbsl templates import dump.json            # merge a dump into your file

In VS Code the same thing is a panel – XBSL: code templates – laid out like the EDT dialog: the list with the call context, the description and the pattern, and buttons to add, edit, delete, import, export and restore the defaults. Saving re-reads the set in the running server, so the next Ctrl+Space already offers the edited template.

tools/extract_docs.py extracts the Element reference from a distribution (the server-with-IDE .car) into a docs.sqlite next to the language data: the stdlib pages (a type, its methods, properties, parameters) with cleaned HTML, a full-text index (SQLite FTS5, from the standard library) and canonical links back to the primary source (https://1cmycloud.com/docs/help/..., taken from the distribution’s sitemap.xml). Page images are stored alongside. The 1C reference is copyrighted, so the database is not shipped in the package – you generate it from your own distribution, like the language data.

python tools/extract_docs.py --dist "$ELEMENT_DIST"

The runtime API xbsl.docs (search, page, tree, for_symbol, asset) reads docs.sqlite; with no database the search is simply empty. It powers the MCP tools (below) and – later – the reference panel in the VS Code extension.

MCP server

A thin adapter over the same core: an agent (e.g. Claude Code) can call the checks as tools and receive structured diagnostics.

pip install -e ".[mcp]"
claude mcp add xbsl -- xbsl-mcp

Tools: lint_paths(paths), lint_source(filename, content), list_rules(); documentation search – docs_search(query), docs_page(id), docs_symbol(name) (needs the docs.sqlite database, see above); type_members(name) – the members of a stdlib type with the return-type roots of its methods in one compact answer (cheaper than a docs page when only the member list matters); metadata scaffolding – meta_new_project, meta_new_object, meta_add_field, meta_add_route, meta_add_method, meta_add_form, meta_add_subsystem, meta_add_dependency, meta_rename_object (with a dry_run plan mode), meta_set_access, meta_object_info, meta_project_info. Every writing meta_* tool applies the changes and returns the lint of the written files in the same response – creation and validation in one round trip. The core and the CLI do not require mcp – it lives only in the [mcp] extra.

Web interface

A local page: point it at a project folder and see the diagnostics. Standard library only (no external dependencies), binds to 127.0.0.1 only.

xbsl-web            # then open http://127.0.0.1:8771/

Per-tier rule toggles, a data-version selector, severity/text filters, dark/light theme; clicking a diagnostic opens the file in VS Code (vscode://).

Element versions

The data is versioned by platform version:

xbsl/data/element/
    index.json            # { available: [...], default: "<version>" }
    <version>/{language.json, stdlib.json, metamodel.json}

Pick a version with --element-version / the XBSL_ELEMENT_VERSION env var / the index default; --version shows what is available. Add a new version by re-running the extractors with a new --dist.

The data root itself is resolved in this order: --data-dir > XBSL_DATA_DIR > a root supplied by an installed xbsl.data entry point > xbsl/data/element inside the package.

Last updated on July 22, 2026
