Tools

Every edt_* tool the bridge exposes: reading the live model, writing through EDT's own engine, and debugging a running infobase.

Tools are edt_* (snake_case); parameters are camelCase (projectName, fqn, queryText); Object names are Cyrillic as in the configuration, the type prefix is English (Catalog.Контрагенты, Document.ЗаказКлиента). The edt_ prefix is deliberate: an MCP host presents every server’s tools to the agent as one flat list, so a name must carry its context itself – edt_rename stays unambiguous where a bare rename is dangerously generic.

A parameter name the tool does not declare refuses the whole call, naming the near miss (deleteContents → deleteContent) and listing what the tool takes. Dropping it in silence would answer like a done deed for a call that did something else.

Together they close the full cycle without leaving MCP – create, develop, build, deliver, debug:

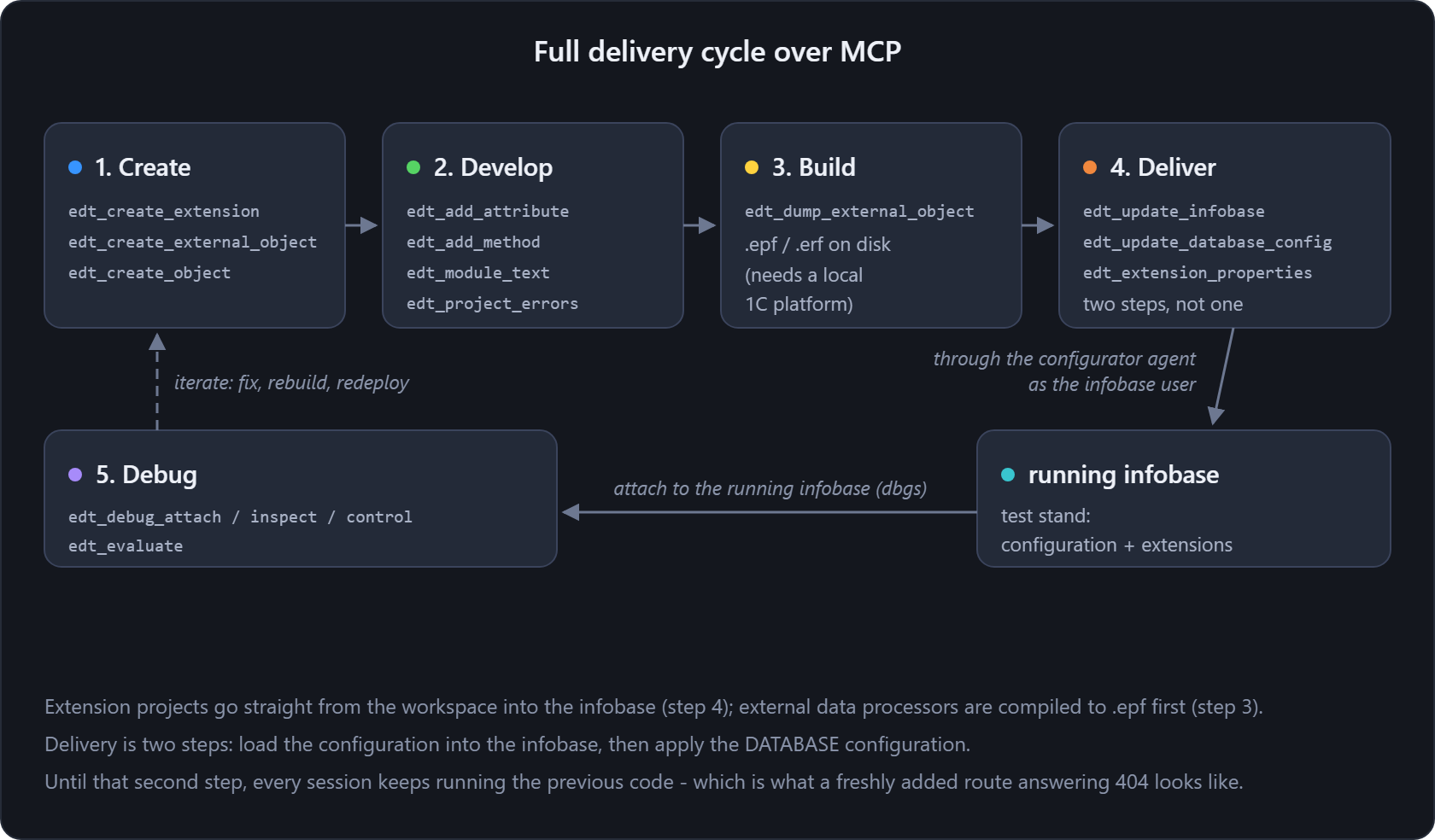

Full delivery cycle over MCP

Read

Tool	What it returns
`edt_projects` · `edt_project_errors`	The open workspace projects – name, disk location, natures, and whether each is a 1C:EDT project – and a project’s EDT validation problems (message, severity, resource, line): narrowed by `fqn` / `modulePath` / `severity`, counted with `countOnly`, or one text line per problem with `brief`. Start here to discover what is addressable. It reports what EDT grades, and EDT grades a call to a method another module does not have as a WARNING (`SU239`, “Property (method) of object is not defined”), not an error – only an undefined bare call is one – so a check of generated code reads the warnings too. `modulePath` reaches the Eclipse markers alone; an EDT check marker is addressed by object, so narrow by `fqn` to see both. A marker is a snapshot, so every listed problem is judged against its file: `stale` when the marker predates the file’s last change on disk, `unsynchronized` when the workspace has not read that change yet; the summary counts them (`staleCount`, `unsynchronized`) and a `hint` says what to do. `refresh=true` re-reads the narrowed scope from disk and runs an incremental build before the markers are read – seconds for one module, where `edt_clean_project` rebuilds everything.
`edt_check_info`	What a validation check MEANS: its description, the non-compliant and compliant examples, and the links to the 1C development standards it enforces – in English or Russian. The companion of `edt_project_errors`, which reports which check fired: that answers what, this answers why. Ask by check id, or paste the problem message – a check whose id is a short code is found by its title.
`edt_metadata_objects` · `edt_metadata_details`	Top-level metadata objects, optionally filtered by type (`Catalog`, `Document`, …) and a name substring; then one object’s core properties and structure – attributes, tabular sections, forms, commands, templates, dimensions, resources, enum values – with each attribute’s value type.
`edt_find_references` · `edt_outgoing_calls` · `edt_outgoing_structures`	Which way the calls go. Inbound references to a metadata object from EDT’s cross-reference index (with `method`: the BSL call sites of `CommonModule.X.method`); the reverse, methods CALLED BY a module / method / form one level out, with call-site counts and an ExtAPI-layer flag; and, best-effort, the top-level keys of the `Структура` passed to each qualified outgoing call.
`edt_module_text` · `edt_go_to_definition` · `edt_symbol_info`	Reading BSL: a module’s source (or one method) plus its procedure/function list with signatures, by FQN or modulePath; a symbol’s definition at a position (kind, name, owning object, location); and the type info at a position – the element under the cursor and the computed value type(s) of the expression.
`edt_search_modules`	Full-text search across a project’s BSL modules – substring or regular expression, optional path filter. Reads through Eclipse’s file buffers, so a module open in an editor is searched as it currently stands, unsaved edits included. Where `edt_find_references` answers “who calls this method”, this answers “where does this text appear”.
`edt_validate_query`	Validates a 1C query against the project’s live metadata: syntax and semantics (unknown tables/fields, type errors), with positions. Takes the query text, or a module address (`modulePath`, optionally one `method`) – then the bridge pulls the `\|`-framed query literals out of the live module itself and validates each one. The batch is followed as a whole too, which EDT does not do: a query reading a temporary table that no earlier query puts (`ПОМЕСТИТЬ`), or that an earlier query dropped, fails the text – for a module literal it is an INFO note, since a shared temporary table manager or another literal may supply the table.
`edt_form_structure` · `edt_form_render` · `edt_picture_export`	Forms and images: a managed form’s items tree (fields/groups/tables/buttons/decorations) with data bindings, static visible/enabled/readOnly, per-item event handlers, input-field props, button→command and the form’s conditional appearance, plus its attributes, commands, parameters and handlers; the same form rendered to a PNG by EDT’s native offscreen renderer (interface variant and theme selectable); and a CommonPicture’s content from its Picture.zip.
`edt_platform_help`	The 1C:Enterprise platform Syntax Helper bundled with EDT (real API reference – objects, methods, properties, events, Ru+En): search by name, or read a page as text. Consult the actual API instead of guessing signatures.

Write

Write tools mutate the model through EDT’s own engine (not text edits). All are token-gated and dry-run by default (apply=false returns a plan and changes nothing); apply=true performs the change and serializes the .mdo.

Write tool	What it does
`edt_create_object` · `edt_delete_object`	Create a new top object (Catalog/Document/Enum/InformationRegister/…) via EDT’s factory + per-type initializer, registered in the Configuration – or delete one, cascading the removal of every reference in metadata AND BSL (`force` required).
`edt_add_attribute` · `edt_modify_attribute` · `edt_remove_attribute`	Add an attribute to a metadata object (type / klass / synonym / comment, validated), change an existing one’s type, synonym or comment, or remove it – removal is reference-checked and refuses while references remain unless forced.
`edt_rename`	Rename an object or member and cascade every reference in metadata AND BSL via EDT’s native refactoring engine (`force` required – a rename is breaking).
`edt_add_method` · `edt_delete_method`	Add or delete a procedure/function in a module’s BSL, both model-guided. The insert refuses any result that would not re-parse cleanly; the cut takes adjacent doc comments with it and its dry-run returns the exact removed text (`force` required – deleting code is destructive). Both address a module by FQN, including `HTTPService.X` / `WebService.X`.
`edt_add_route`	Add a route – a URL template plus one HTTP method – to an `HTTPService`, the write tool for HTTP service routes alongside the attribute and method writers. Generates the `uuid` of both the url template and its method (hand-writing which is exactly what the bridge exists to avoid), resolves the `httpMethod` enum, and with `createHandler` splices a `Функция <handler>(Запрос)` stub into the service module.
`edt_add_form`	Add a managed form to a metadata object through EDT’s own form generator – the engine behind the “New form” wizard – so the form, its items and its module are generated rather than hand-written as XML.
`edt_add_form_attribute` · `edt_modify_form_attribute` · `edt_remove_form_attribute`	Add, change and remove a form attribute – or, with `columnOf`, a column of a value-table attribute. Ids come from EDT’s form identifier service; besides the metadata type grammar these accept platform types a form may hold (`ТаблицаЗначений`, `СписокЗначений`, …) and OBJECT types (`ВнешняяОбработкаОбъект.X`, `СправочникОбъект.X`) – the type a main attribute carries. Removal lists the items bound to the attribute and needs `force`.
`edt_add_form_command` · `edt_modify_form_command` · `edt_remove_form_command`	Add, change and remove a form command. Adding can also write the handler procedure’s stub into the form module, creating that module when the form has none. Removal lists the buttons wired to the command and needs `force`.
`edt_add_form_handler`	Register an event handler on a form or on one of its items – the `handlers` entry in `Form.form` without which the platform never calls the procedure and validation says nothing. The allowed events come from EDT itself, so a misspelled one is refused with the list; optionally writes the stub with the signature the event declares and the directive its environments imply.
`edt_add_form_item` · `edt_modify_form_item` · `edt_remove_form_item`	Add, change and remove a form’s visual items – field, table, button, group, decoration – through EDT’s own `IFormItemManagementService`, the service the form editor calls. A table bound to a value-table attribute gets its columns auto-filled, and a `titleRu` given to the table stays on the table – the generated columns keep EDT’s own default. Changing also renames an item (`newName`) – the form model is where an item’s name lives, and the handler procedures keep theirs. Removal takes everything nested inside and needs `force`.
`edt_adopt_object`	Adopt an object of the base configuration into an extension project via EDT’s own `IModelObjectAdopter` – the step that must happen before an extension can intercept anything on that object, and the one that completes `edt_create_extension`.
`edt_import_project`	Register an EXISTING project directory in the workspace – “Import existing project” without the dialog. The step the create/work/delete cycle lacked: an extension in modification-and-control mode is validated against a BASE project on the target release, and that one comes from another worktree. Nothing on disk is rewritten; a name of its own lets two checkouts of one repository live side by side.
`edt_create_extension` · `edt_create_external_object`	Start a project. A configuration extension against a base project via `IExtensionProjectManager`, its root Configuration being the base configuration adopted – as the wizard does it, which is what makes the project loadable into an infobase – plus name prefix, purpose (Customization·AddOn·Patch) and synonym; or an external data processor project, the start of the “processor → .epf” cycle.
`edt_clean_project` · `edt_delete_project`	Finish with a project. Discard its build results so validation runs again (EDT’s “Clean” dialog, programmatically – reports the problem count before and after, waiting until it stops changing, because a stale marker outliving its cause is worse than no marker; for one module changed on disk, `edt_project_errors` with `refresh=true` is the light alternative), or remove it from the workspace through the Eclipse workspace so no ghost project is left behind (`force` required – deleting a project is irreversible).
`edt_build_extension` · `edt_dump_external_object`	Build the binaries: a `.cfe` from an extension project, or an `.epf`/`.erf` from an external data processor/report. Both can bypass EDT’s platform resolver when it serves no thick client – exporting designer XML in-process, then assembling with a full on-disk 1C install in a throwaway temp infobase that is deleted afterwards. `logPath` keeps the platform’s build log next to the artefact. The dump now falls back to the on-disk route when EDT’s own dumper refuses (`route` pins it to `edt` or `disk`), and puts the auto-dump generation back if the refusal switched it off.

Infobases, the cluster and the platform

Everything that talks to a RUNNING infobase rather than to the model in EDT. Four places to reach, and they are not interchangeable - the Through column says which one a tool uses:

EDT’s own synchronization – what the IDE uses. It opens its own infobase connection and has no way to take credentials from outside the UI, so it stops at an infobase that authenticates its users.
ibcmd – straight at the database, by file path or DBMS coordinates, so a clustered infobase needs no cluster access. Its extension mode has no 1C credentials at all.
the configurator agent – a designer started with /AgentMode, taking commands over SSH and authenticating AS THE INFOBASE USER. It reaches what the other two cannot, and the bridge keeps one running per infobase because starting one is slow and holding one is cheap.
rac – the cluster itself, which is where sessions live. Neither the agent nor ibcmd sees them.

Tools that change an infobase are token-gated and dry-run by default, exactly like the write tools above.

Tool	Through	What it does
`edt_infobases` · `edt_platform_installations`	EDT	What the platform side has to work with: EDT’s registered infobases (name, uuid, connection string) with the open projects’ associations, and the 1C:Enterprise installations EDT resolves from when dumping an `.epf`/`.erf` or creating an infobase – each resolved to a concrete install carrying a thick client, plus the full installs found on disk.
`edt_designer_agent`	agent	Lifecycle of the configurator agents the bridge drives: list, start, stop, sweep. An agent is a configurator in `/AgentMode` holding an open infobase session, authenticating as the infobase user – which is how the bridge reaches an infobase the other transports cannot. Started on demand and kept between calls; stopping one frees the session it holds on the server. An agent idle past `EDT_BRIDGE_AGENT_IDLE_MINUTES` (30 by default, `off` to keep agents forever) stops by itself, because a standing agent costs a client license and a Designer session. What a crashed agent left behind – the session that holds the infobase’s configuration lock – is swept before every start and on demand with `action=sweep`; ownership is proven by the record each agent writes, never guessed from the session’s host and user.
`edt_infobase_config_state`	agent	Is the infobase’s database configuration – the code sessions actually execute – up to date, or is an update still pending? The platform itself answers: the update is started and its confirmation refused, so nothing is applied and a pending update comes back as the full list of structure changes that are waiting. Driven through a configurator agent, so a server infobase that authenticates its users is reachable.
`edt_update_database_config`	agent	Applies the database configuration – the step that makes running sessions execute the configuration the infobase holds. Loading a project into an infobase does not do this, and until it happens every session keeps running the previous code (a freshly added HTTP route answering 404 is what that looks like). Dry-run by default; `sessionTermination=force` ends the sessions holding the base when an exclusive lock is needed.
`edt_update_infobase`	EDT · agent	Update an infobase’s configuration from an EDT project. Through EDT’s synchronization engine by default (db-structure changes auto-confirmed, a conflict aborts), which cannot authenticate to an infobase that has users; with `transport=agent` the project is exported to designer XML and loaded through the agent instead – the only route into a server infobase with users – and the database configuration is applied afterwards.
`edt_create_infobase` · `edt_register_platform`	EDT · disk install	Create an empty file infobase and register it in EDT’s list, falling back to a full install found on disk when EDT resolves none for the version; or register a full install into EDT so its own engine can use it.
`edt_extension_properties`	agent · ibcmd	Read and set how an extension is REGISTERED in an infobase – safe mode, protection from dangerous actions, active, scope. Neither building a `.cfe` nor updating from EDT decides these, and a freshly registered extension gets safe mode and dangerous-action protection on; an extension that changes methods of the base configuration cannot run under them. Pass the extension project and the result says whether that is the case. Addressed by an EDT-registered name it goes through the agent, which reaches a server infobase with users; by explicit DBMS coordinates it goes through `ibcmd`, which cannot.
`edt_delete_extension`	agent	Removes an extension from an infobase – the step that closes the lifecycle (create · load · configure · delete). The dry-run reads its current properties first, so a wrong name is answered plainly. Needs force on top of apply: an extension’s configuration lives in the infobase, and nothing here puts it back.
`edt_infobase_sessions`	rac	The 1C cluster’s sessions through `rac`: list them (for one infobase or one application) and end them. Neither the agent nor `ibcmd` can – sessions live in the cluster manager. Reach for it when an infobase refuses to be configured: a designer session that was killed rather than closed still holds the configuration lock, and shows up here as a `Designer` session. Terminating is dry-run by default and needs force.
`edt_infobase_maintenance`	rac	A maintenance window around a database update: `begin` raises `scheduled-jobs-deny` (optionally `sessions-deny` with a permission code), watches the sessions drain by themselves and reports “clear to update”; `end` lowers the flags; `status` just reports. The point: on a lively base BackgroundJob sessions respawn every minute, so terminating them is useless – deny first, and nothing has to be killed. Needs the infobase administrator; dry-run by default.
`edt_infobase_dump`	ibcmd	Dump an infobase to a `.dt` through `ibcmd` – the backup to take before applying a configuration to the database, which the bridge previously had no way to make. Addresses the infobase by file path or DBMS coordinates, refuses to overwrite an existing file, and is dry-run by default. Nothing in the infobase changes, but the dump reads all of its data, so it is token-gated.

Debug

Attach to a running infobase’s debug server (dbgs) and drive execution. Use a test stand, not production. All are token-gated; edt_evaluate is gated hardest.

Debug tool	What it does
`edt_debug_attach` · `edt_debug_detach`	Attach a debug session to a running infobase’s debug server (returns a `sessionId` for the other debug tools), and detach – terminating the session and freeing the infobase.
`edt_debug_inspect` · `edt_debug_control`	List a session’s threads and, for suspended ones, their BSL stack frames + the top frame’s variables (read-only); then control execution – `suspend`/`resume`, or `stepOver`/`stepInto`/`stepReturn` a suspended thread.
`edt_evaluate`	Evaluate an arbitrary BSL expression in a suspended frame – code execution against the live infobase. Needs the token and per-call `allowCodeExecution=true` and the server switch `EDT_BRIDGE_ALLOW_EVALUATE=1` (off by default).

Served by the wrapper

One tool does not come from the bridge inside EDT: it acts ON that EDT, and a tool cannot report on the process it just ended. edt-bridge-mcp serves it itself, listing it alongside the bridge tools and answering it without forwarding.

Wrapper tool What it does

edt_open_gui Hand the workspace over to the GUI EDT: stop the headless session behind the bridge, wait until its processes are really gone – the port falls silent well before the runtime does, and it is that leftover process which otherwise gets hunted in the task manager – and open the EDT window on the same workspace. force kills what does not stop in time, including the keepalive shell that outlives a tree kill from below. The bridge returns by itself once the GUI EDT has loaded the plugin.

Wrapper tool	What it does
`edt_open_gui`	Hand the workspace over to the GUI EDT: stop the headless session behind the bridge, wait until its processes are really gone – the port falls silent well before the runtime does, and it is that leftover process which otherwise gets hunted in the task manager – and open the EDT window on the same workspace. `force` kills what does not stop in time, including the keepalive shell that outlives a tree kill from below. The bridge returns by itself once the GUI EDT has loaded the plugin.
